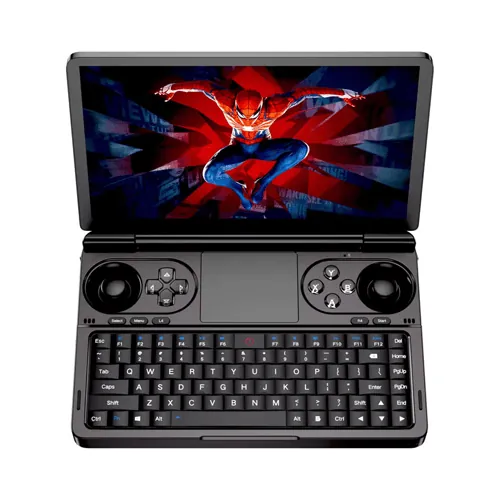

GPD Win Mini Review: A Powerful Clamshell Handheld Gaming PC
GPD · 2023-11-01
The GPD Win Mini is a compact clamshell handheld gaming PC powered by AMD Ryzen 7040 series processors, featuring up to a 7-inch 1080p touchscreen, 32GB LPDDR5 RAM, and a 44.24Wh battery. It offers excellent performance for PC gaming and emulation in a portable form factor.
Overview
The GPD Win Mini is a clamshell-style handheld gaming PC that combines portability with powerful hardware. It features AMD's latest Zen 4 processors (Ryzen 5 7640U or Ryzen 7 7840U) and Radeon 700M series graphics, making it capable of running modern PC games and emulating consoles like the Nintendo Switch, PS2, and Wii U. The 7-inch 1920x1080 IPS touchscreen provides crisp visuals, while the compact design (168mm x 109mm x 26.8-31.7mm) and 520g weight make it easy to carry.
Key Specs Highlights
- Processor: AMD Ryzen 5 7640U (6 cores, 12 threads) or Ryzen 7 7840U (8 cores, 16 threads)
- Graphics: AMD Radeon 760M (7640U) or Radeon 780M (7840U)
- Memory: 16GB or 32GB LPDDR5 RAM
- Storage: 512GB / 1TB / 2TB M.2 2230 SSD, expandable via MicroSD
- Display: 7-inch 1920x1080 IPS touchscreen, 60Hz, 319 PPI
- Battery: 44.24Wh
- Connectivity: WiFi 6E, Bluetooth 5.2, USB4, OcuLink, 3.5mm headphone jack
- Controls: Hall effect analog sticks and triggers, gyroscope, dual stereo speakers
- OS: Windows
Who It Is For
The GPD Win Mini is ideal for gamers who want a portable Windows gaming device that can handle AAA titles and emulation. Its clamshell design protects the screen and controls, making it suitable for travel. It's also great for users who need a compact PC for productivity tasks, thanks to the full Windows OS.
Buying Notes
Prices start at $699 for the Ryzen 5 7640U / 16GB / 512GB model, $869 for the Ryzen 7 7840U / 32GB / 512GB model, and $999 for the Ryzen 7 7840U / 32GB / 2TB model. The device was released in November 2023. Consider your performance needs: the 7840U with Radeon 780M offers significantly better graphics performance. The 44.24Wh battery provides moderate battery life; expect 2-4 hours of gaming depending on settings. The OcuLink port allows connection to external GPUs for desktop-level performance.
| CPU | AMD Zen 4 |
|---|---|
| GPU | AMD Radeon 760M / AMD Radeon 780M |
| Name | GPD Win Mini |
| Brand | GPD |
| Memory | 16 GB / 32 GB LPDDR5 |
| Weight | 520 g |
| Battery | 44.24 Wh |
| Cooling | Heat pipe fan, vents |
| Storage | Internal 512 GB / 1 TB / 2 TB M.2 2230 SSD, External MicroSD |
| Speakers | Dual stereo |
| Processor | AMD Ryzen 5 7640U / AMD Ryzen 7 7840U |
| Vibration | Yes |
| Body Color | Black |
| Dimensions | 168 mm x 109 mm x 26.8 - 31.7 mm |
| Screen PPI | 319.26 |
| Form Factor | Clamshell / Foldable |
| Price Range | $700 - $2000 |
| Screen Size | 7.0 inches |
| Screen Type | LTPSTouchscreen |
| Audio Output | 3.5mm headphone jack |
| Connectivity | WiFi 6E, Bluetooth 5.2, USB4, OcuLink |
| Release Date | 2023 / 11 |
| Screen Ratio | 16:9 |
| Video Output | OcuLink, USB-C video output |
| CPU Frequency | 3.5 GHz - 4.9 GHz / 3.3 GHz - 5.1 GHz |
| Other Sensors | Gyroscope, Hall effect triggers and analog sticks |
| Shell Material | Plastic, Magnesium Alloy combination |
| Starting Price | 7640U/16GB/512GB: $699; 7840U/32GB/512GB: $869; 7840U/32GB/2TB: $999 |
| Operating System | Windows |
| Screen Resolution | 1920 x 1080 |
| GPU Core Frequency | 2.6 GHz / 2.7 GHz |
| Screen Refresh Rate | 60Hz |
| CPU Cores and Threads | 6 cores 12 threads / 8 cores 16 threads |
| Emulator Game Support | Gamecube, Wii, PS2, Wii U, Switch playable |
