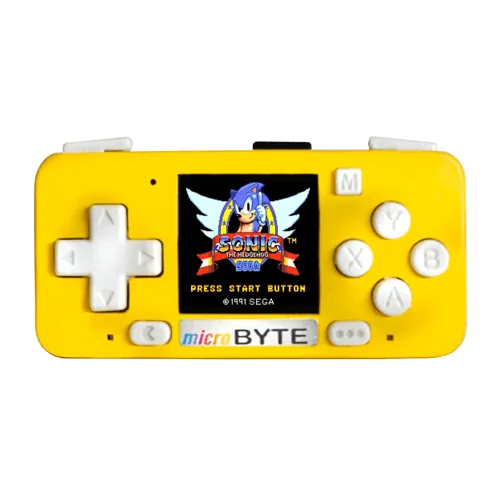

microByte: A Tiny Retro Gaming Handheld by Byte-Mix Labs
Byte-Mix Labs · 2021-07-01
The microByte is a compact, open-source handheld gaming device powered by the ESP32-WROVER E module, featuring a 1.3-inch IPS display and support for classic consoles like GameBoy, NES, and Sega Master System.
Overview
The microByte is a miniature retro gaming handheld developed by Byte-Mix Labs. It is built around the Espressif Systems ESP32-WROVER E module, which integrates a Tensilica Xtensa LX6 dual-core processor clocked at 240 MHz. Despite its small size, it offers a surprisingly capable gaming experience for classic 8-bit and 16-bit era consoles.
Key Specs Highlights
- CPU: Tensilica Xtensa LX6 dual-core @ 240 MHz
- RAM: 8 MB
- Storage: 16 MB internal + MicroSD expansion
- Display: 1.3-inch IPS, 240x240 resolution, 60 Hz, 261 PPI
- Battery: 500 mAh
- Connectivity: Bluetooth, WiFi
- OS: Open Source / Proprietary
- Emulation: GameBoy, GameBoy Color, NES, GameGear, Sega Master System, ScummVM
Who It Is For
The microByte is ideal for retro gaming enthusiasts who value portability and tinkering. Its open-source nature appeals to developers and hobbyists who want to customize the firmware or create their own games. The small screen and compact form factor make it a great pocket companion for quick gaming sessions.
Buying Notes
As of its release in July 2021, the microByte was priced starting at $45 (approximately ¥326 CNY). It is available in white, yellow, blue, and transparent colors. Given its age, availability may be limited; check second-hand markets or the manufacturer's website for current stock. The device uses a MicroSD card for additional storage, so factor that into your purchase.
| CPU | Tensilica Xtensa LX6 |
|---|---|
| RAM | 8 MB |
| Name | microByte |
| Brand | Byte-Mix Labs |
| Battery | 500 mAh |
| Speaker | Mono |
| Storage | 16 MB internal & MicroSD external |
| Grip Type | Horizontal |
| Processor | Espressif Systems ESP32-WROVER E |
| Dimensions | 78 mm x 40 mm x 17 mm |
| Screen PPI | 261.09 |
| Body Colors | White, Yellow, Blue, Transparent |
| Price Range | $50 - $75 |
| Screen Size | 1.3 inches |
| Screen Type | IPS |
| Connectivity | Bluetooth, WiFi |
| Release Date | 2021 / 07 |
| Screen Ratio | 1:1 |
| CPU Frequency | 240 MHz |
| Shell Material | Plastic |
| Starting Price | $45 (approx. ¥326 CNY) |
| Operating System | Open Source / Proprietary |
| Screen Resolution | 240 x 240 |
| Screen Refresh Rate | 60Hz |
| CPU Cores and Threads | 2 cores 2 threads |
| Emulator Game Support | GameBoy, GameBoy Color, NES, GameGear, Sega Master System, ScummVM |
