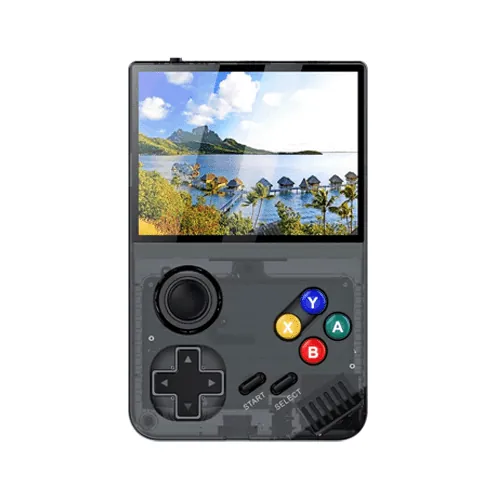

SJGAM M19 Handheld Gaming Console Review

The SJGAM M19 is a vertical handheld gaming device powered by the RockChip RK3566 chipset, featuring a 4:3 IPS display and open-source OS, ideal for retro gaming enthusiasts.

Overview

The SJGAM M19 is a compact vertical handheld gaming console designed for retro gaming. It runs on an open-source operating system and is powered by the RockChip RK3566 processor, paired with 1GB of LPDDR4 RAM. The device features a 4:3 IPS display with a resolution of 640x480, providing a classic gaming experience. Storage is expandable via an external TF card slot, and connectivity includes Mini HDMI output and a 3.5mm headphone jack. The battery capacity is 3000 mAh.

Key Specs Highlights

  • Processor: RockChip RK3566 (Cortex-A55, 1.8 GHz, 4 cores)
  • GPU: Mali-G52 2EE (850 MHz)
  • RAM: 1 GB LPDDR4
  • Display: 4:3 IPS, 640x480, 60Hz, 228.57 PPI
  • Storage: External TF card slot
  • Battery: 3000 mAh
  • Video Output: Mini HDMI
  • Audio: 3.5mm headphone jack, single speaker
  • OS: Open-source system
  • Colors: Gray, White, Black Transparent, Purple Transparent
  • Material: Plastic
  • Release Date: April 2024

Who It Is For

The SJGAM M19 is perfect for retro gaming fans who prefer a vertical form factor and open-source software. It suits those who enjoy tinkering with custom firmware and emulating classic consoles from the 8-bit and 16-bit eras. The 4:3 screen and physical controls offer an authentic feel for older games.

Buying Notes

Since no official price is provided, compare with similar RK3566 handhelds. The M19's open-source OS may appeal to users who want flexibility, but note the limited RAM (1GB) and lack of internal storage. Check for community support and available custom firmware before purchasing. The device is available in multiple transparent colors.

Specifications
CPUCortex-A55
GPUMali-G52 2EE
RAM1 GB LPDDR4
NameSJGAM M19
AliasSega Mei M19
BrandSJGAM
Battery3000 mAh
CoolingNone
SpeakerSingle speaker
StorageExternal TF card slot
Grip TypeVertical
ProcessorRockChip RK3566
Screen PPI228.57
Body ColorsGray, White, Black Transparent, Purple Transparent
Screen TypeIPS
Audio Output3.5mm headphone jack
Release Date2024 / 04
Screen Ratio4:3
Video OutputMini HDMI
CPU Frequency1.8 GHz
Shell MaterialPlastic
Operating SystemOpen-source system
Screen Resolution640 x 480
GPU Core Frequency850 MHz
Screen Refresh Rate60Hz
CPU Cores and Threads4 cores 4 threads
